eclipse led16a

Eclipse LED16A

  • Indication for 16 zones and 3 partitions;
  • Shortcut buttons to additional menus – Memory, Troubles display and Bypassed zones;
  • Quick buttons for all arming modes;
  • 3 fast buttons’ combination for sending of PANIC, MEDICAL and FIRE alarm messages to a central monitoring station;
  • Supports 2 programming types: by addresses and by operations;
  • Adjustable intensity of backlight for the display and buttons;
  • Adjustable buzzer volume;
  • Bi-directional TAMPER switch.
Category:

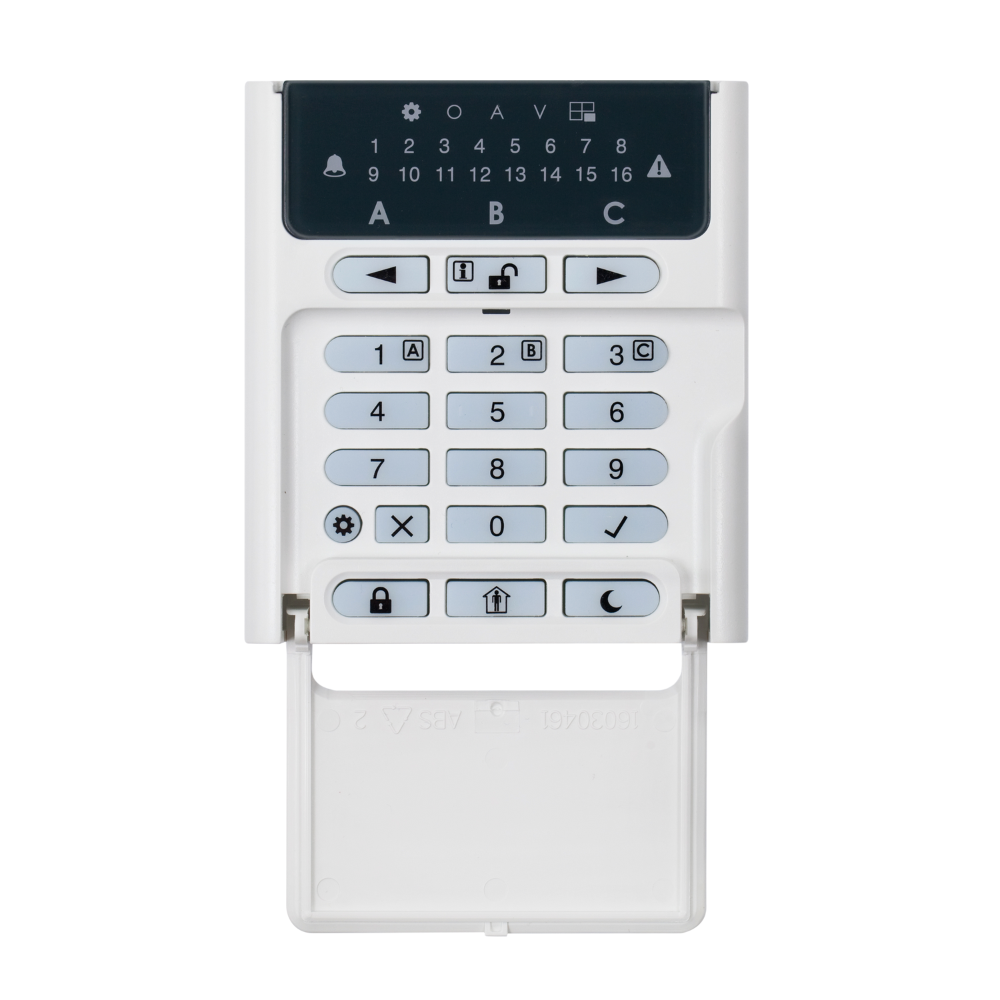

Eclipse LED16A is a keypad with LED indication of zones, troubles and arming type. It is a part of the Eclipse series alarm systems.

The keyboard provides 1 input zone. Eclipse LED16A is suitable for programming and management of systems up to 3 independent areas and up to 16 zones.





System element Periphery
Product type Indoors
Technology type Wired
